TSA2
Installation, details, options

For a larger view, please mouseover the image.

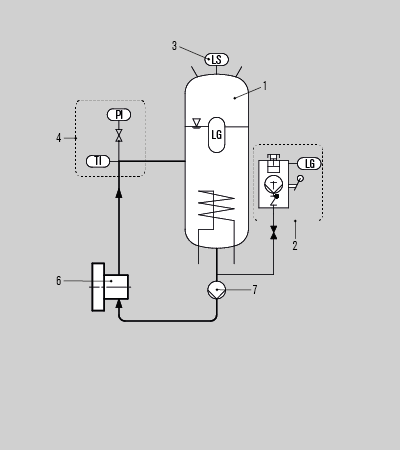

Operating and installation diagram

The TSA2 vessel must always be installed above the mechanical seal.

The buffer/barrier fluid flows into the vessel via the return line for cooling. The fluid exchange takes place according to the thermosiphon principle or by forced circulation e.g., with a pumping screw.

The connection piping to the seal should have as little resistance as possible.

1 Thermosiphon vessel
2 Refill unit
3 Level switch
4 Pressure and temperature measuring unit
6 Mechanical seal
7 Circulation pump
